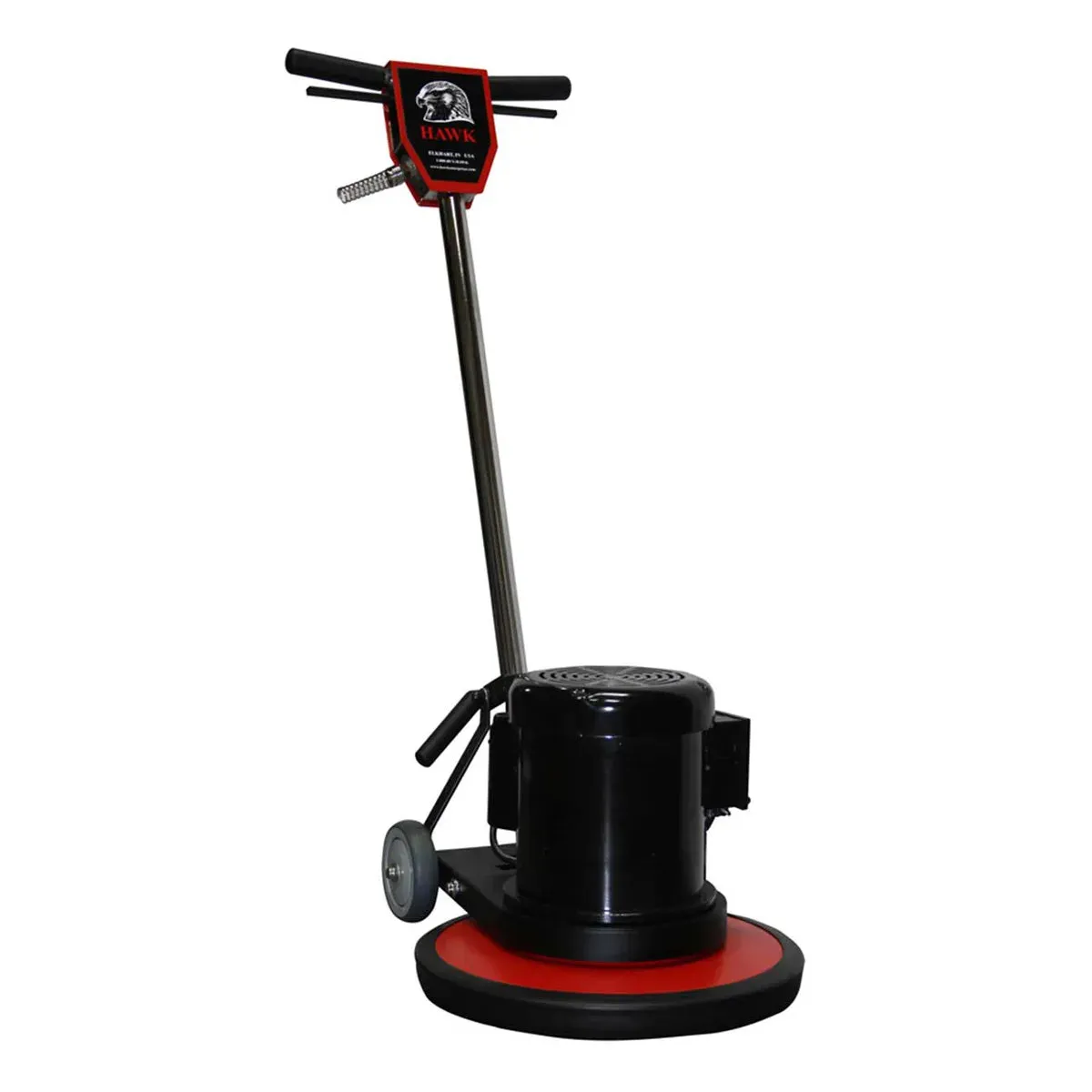

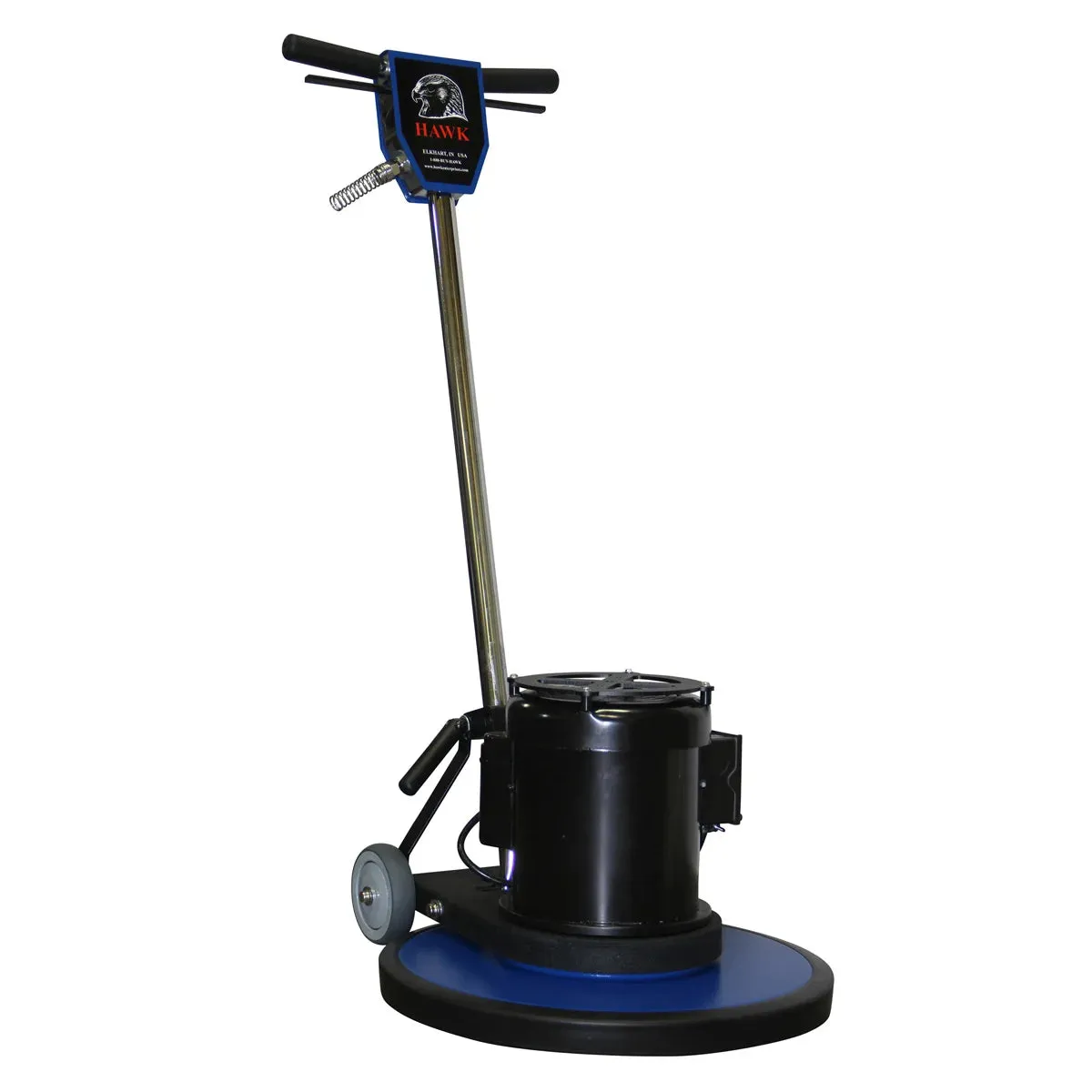

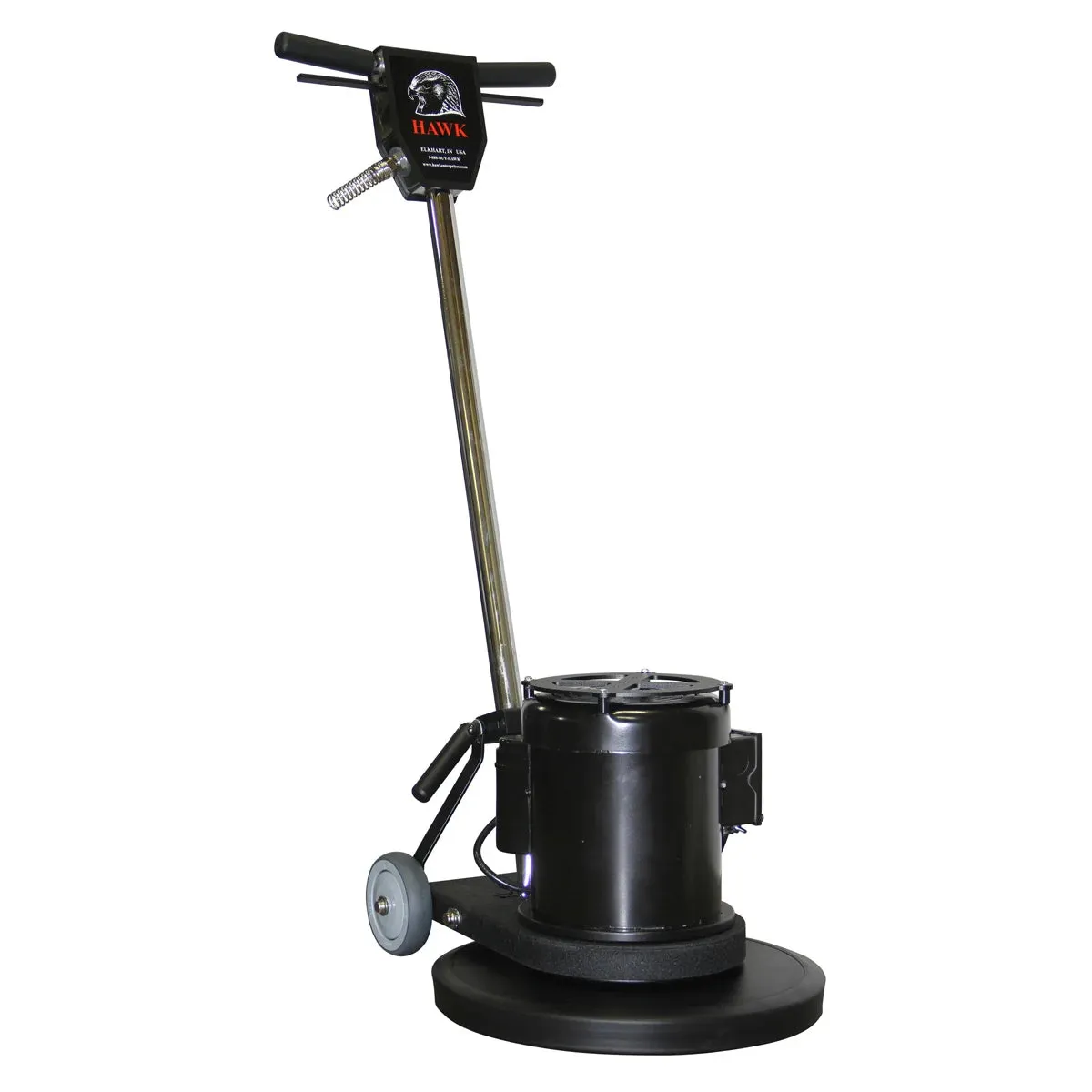

Hawk BRUTE Floor Machines
The BRUTE is built for high productivity in the toughest jobs like concrete resurfacing, natural stone polishing, wood screening and sanding. We fit the powerful 1.5 HP, 180 frame TEFC AC motor with 11:1 gears and industrial grade steel coupler. You will power your BRUTE without blowing breakers and reducing down time.
Features
- 180 frame with a 1.5 HP totally enclosed and fan cooled (TEFC) AC dual capacitor engine (keeps debris and moisture out for greater motor life)
- SDP (Severe Duty Planetary) 3 idle gear box with 11:1 gears - 160 RPM
- Twin and triple idler planetary steel helical-cut gear drives
- Long 50 ft. cord with extra heavy-duty spring steel cord strain relief and molded plug
- Comfort-style vinyl handle grips for ease of use
- Dual steel operating triggers for left or right hand operation
- Negative pressure on/off switch
- Variable position positive lock handle for operator comfort and safety
- One-piece, heavy-duty steel handle optimum durability
- Thumb-operated safety-switch
- 5" non-marking ball bearing wheels
- Welded frame for heavy-duty reliable performance
- 360° wrap-around bumper requires no tools for replacement
- Totally enclosed fan cooled motor is ideal for the harshest conditions, dust moisture, chemicals and great for sanding or screening applications, stone care or concrete work
- Low current draw
- Solid steel coupler
- Ductile iron ring gear
- Dual hardened torque pins
- Ten high quality bearings
- Motor shaft protecting retainer
- 3 year manufacturer warranty on motor, 1 year warranty on the rest of the machine
- UL/CUL approved
Hawk Brute Floor Machine Specification |
||
Model | Hawk BRUTE 17 in | Hawk BRUTE 20 in |
Pad Size | 17 in. | 20 in. |
Power Source | 115 V, 60 Hz | 115 V, 60 Hz |
Power | 1-1/2 hp | 1-1/2 hp |
Amp Draw | 7.9 amps | 8.4 amps |
Gear Box | 3-Idler 11:1 | 3-Idler 11:1 |
Brush RPM | 165 RPM | 165 RPM |
Cord | 50’ 12-3 STJOW | 50’ 12-3 STJOW |
Weight | 123 lbs. | 125 lbs. |
