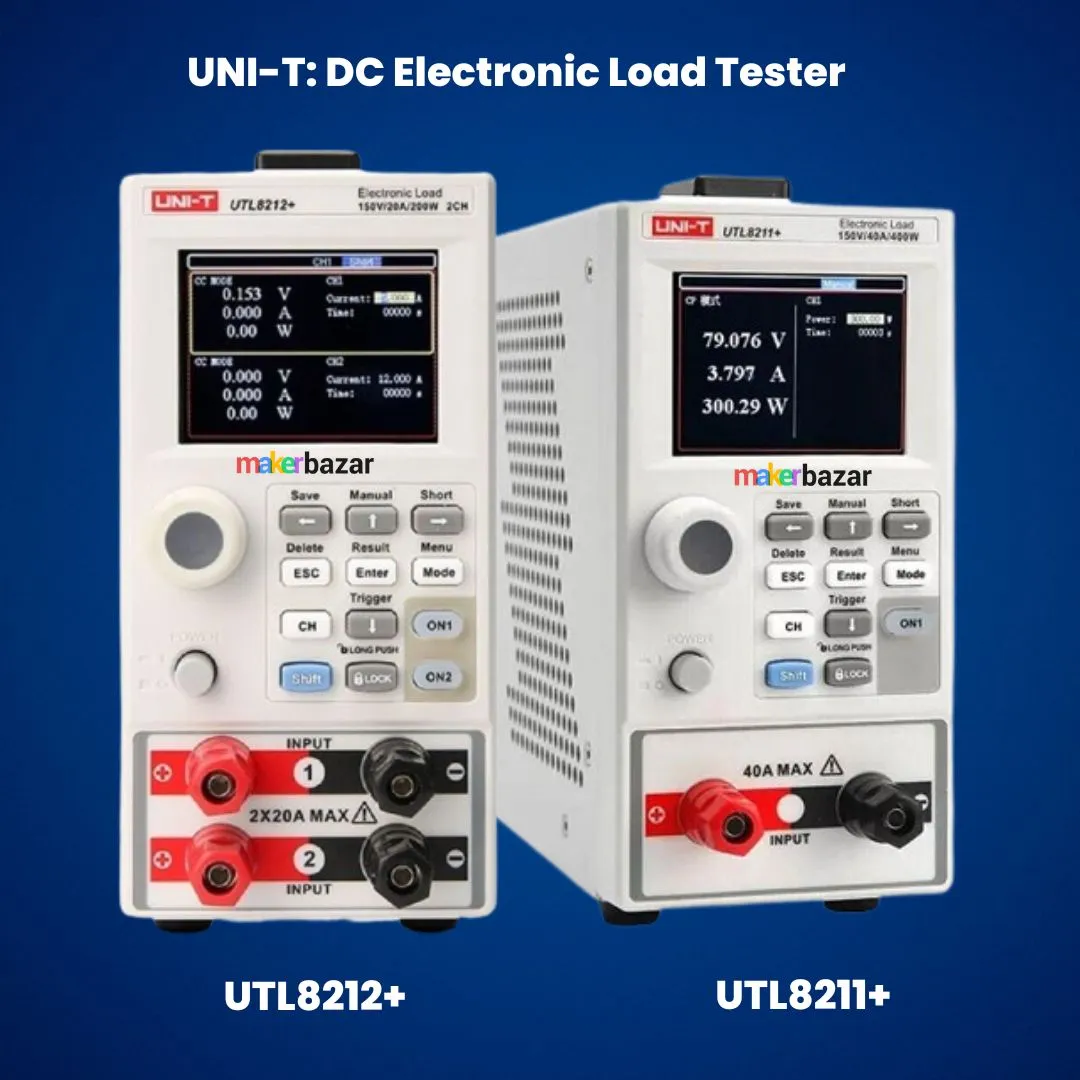

UNI-T High-Precision Compact DC Electronic Load |UTL8211 Upgraded Model Of UTL8211| UTL8212
UTL8200 series electronic load is equipped with a 2.8-inch LCD display, which is convenient and simple to operate, stylish and elegant in appearance, stable in operation.Supports dual-channel completely independent testing, has a wide power measurement range, and has a test resolution as high as 1mV/1mA.

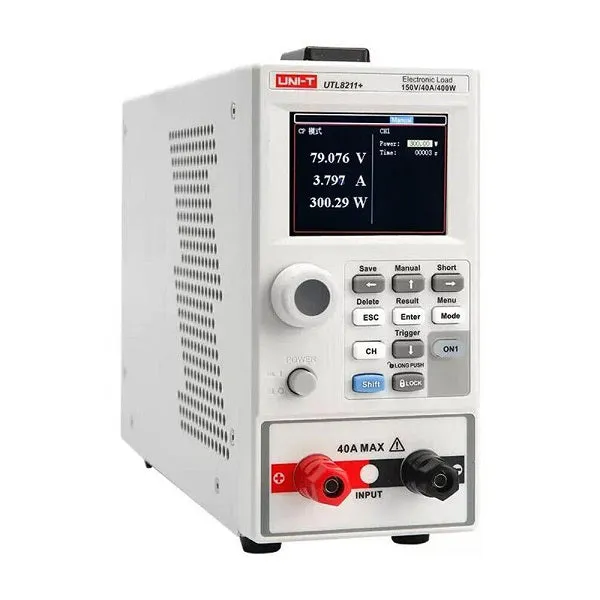

UTL8211 Function:
- Display: 2.8-inch 24-bit true color LCD
- Channels: Single channel
- Voltage: Maximum 150V
- Current: Maximum 40A
- Power: Maximum 400W
- Sampling Rate: 4.8MHz Current-Voltage Synchronous ADC
- Measurement Resolution: 1mV / 1mA
- Operation Modes: CC, CV, CR, CP
- Dynamic Current Test: Up to 5kHz
- Current Control: Programmable rise and fall rates
- Connectivity: Standard RS232 interface
- Protocol: Standard SCPI
-
Software: Host computer software for remote operation and monitoring

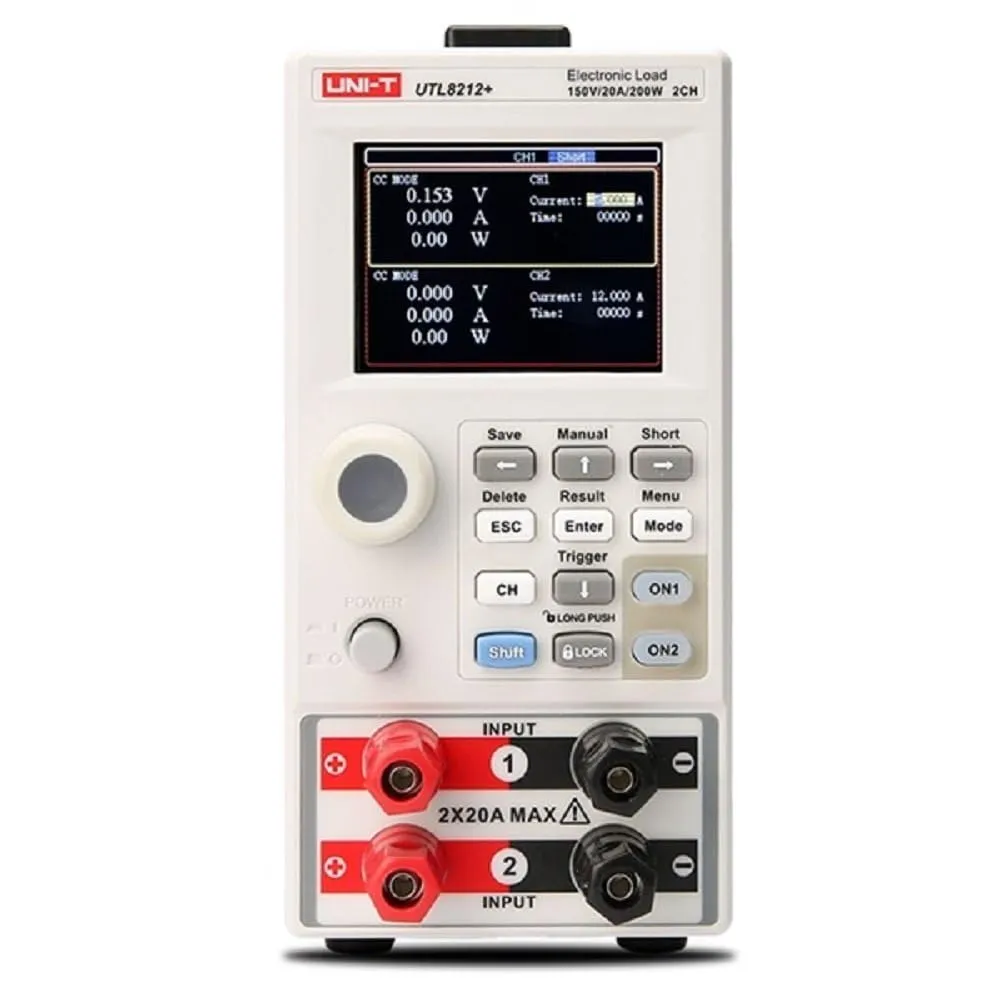

UTL8212 Function:
- Voltage: 150V
- Current: 20A
- Total Power: 2 x 200W
- Resolution: 1mV / 1mA
- Max Dynamic Frequency: 5kHz
- Current Slew Rate: 0.04A/mS to 0.2A/μS
- Size: ¼ 4U
- Connectivity: RS232, optional RS485
